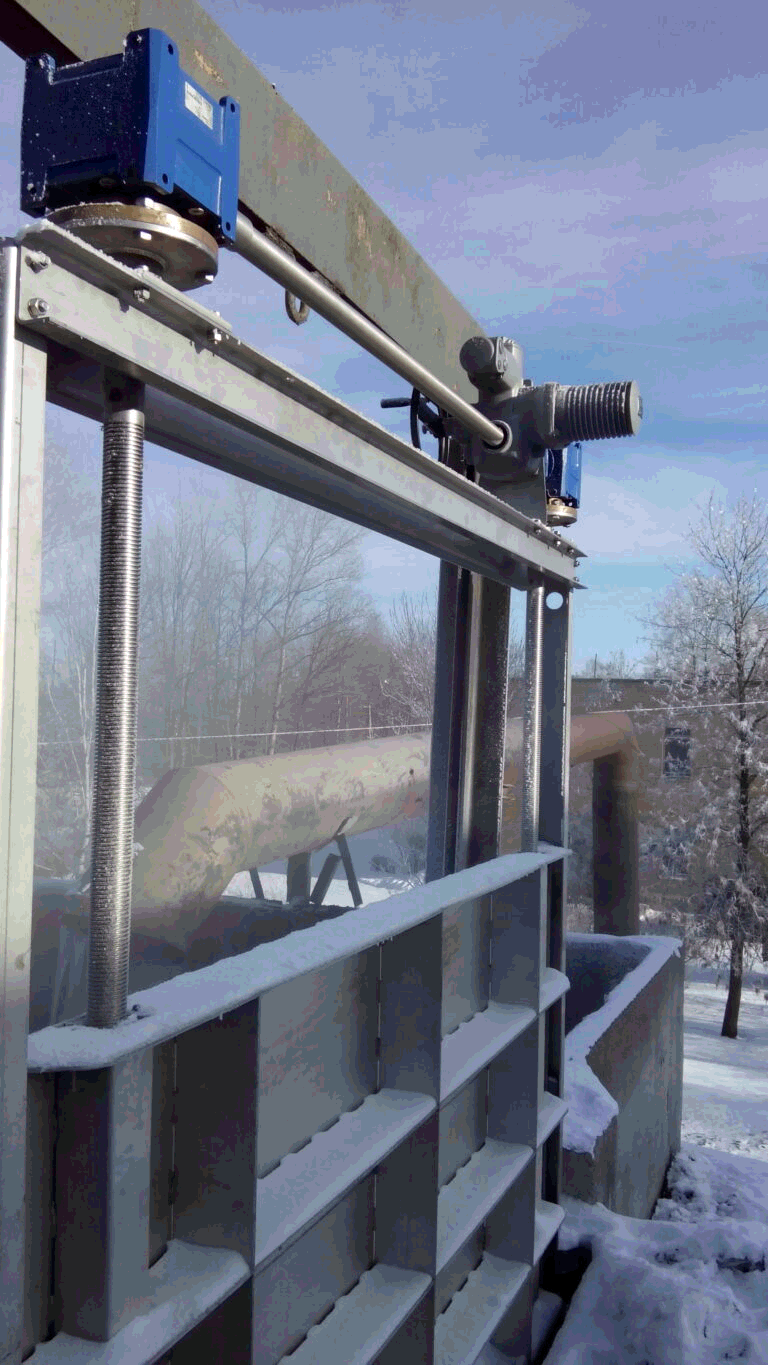

Penstock

Application

Applicable project types:

• Waterworks / water intake systems
• Flood & drainage works (anti-flood / storm water)
• Power-plant water-side systems
• Water intakes/outfalls in LNG & chemical plants

Typical use: penstock gate / sluice gate as a flow cut-off & control element for hydraulic channels and in/out sections where controlled operation is required.

Standard

Customized

Capability

Capabilities (penstock-related engineering ability):

• Custom design & simulation: 3D modeling, flow simulation, stress/structural analysis
• Custom-built fabrication: non-standard manufacturing and system integration per project hydraulic conditions/layout
• Coverable project scale (engineering ranges stated in the document):

— Width: up to 10 m

— Head: up to 20 m water column

— Flow rate: up to 120,000 m³/h

Approval

Track record across multiple international projects. Subject to project-specific approval by the owner, engineer, or consultant.
